Hydraulic loading
High-pressure oil drives six working cylinders through a coordinated pressure circuit.

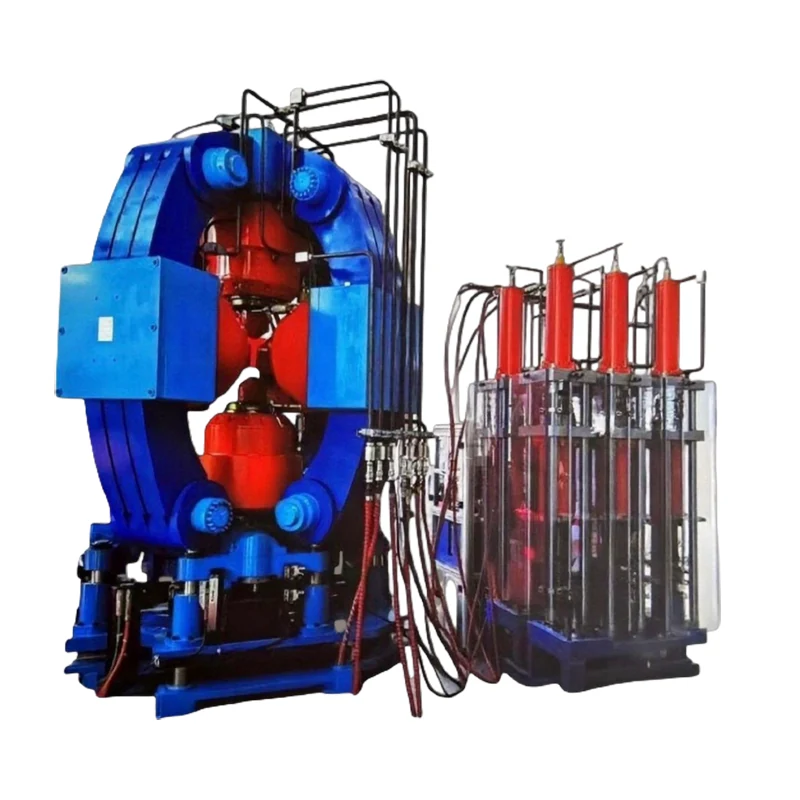

Six-Sided Cubic Hydraulic Press
Industrial HPHT equipment for controlled synthesis of superhard materials and advanced high-pressure research.
- Up to
- 6 GPa chamber pressure
- Up to
- 2000°C process temperature
- Loading
- 6-way synchronized compression
01 / Equipment Overview
Six directions. One precisely controlled reaction cell.

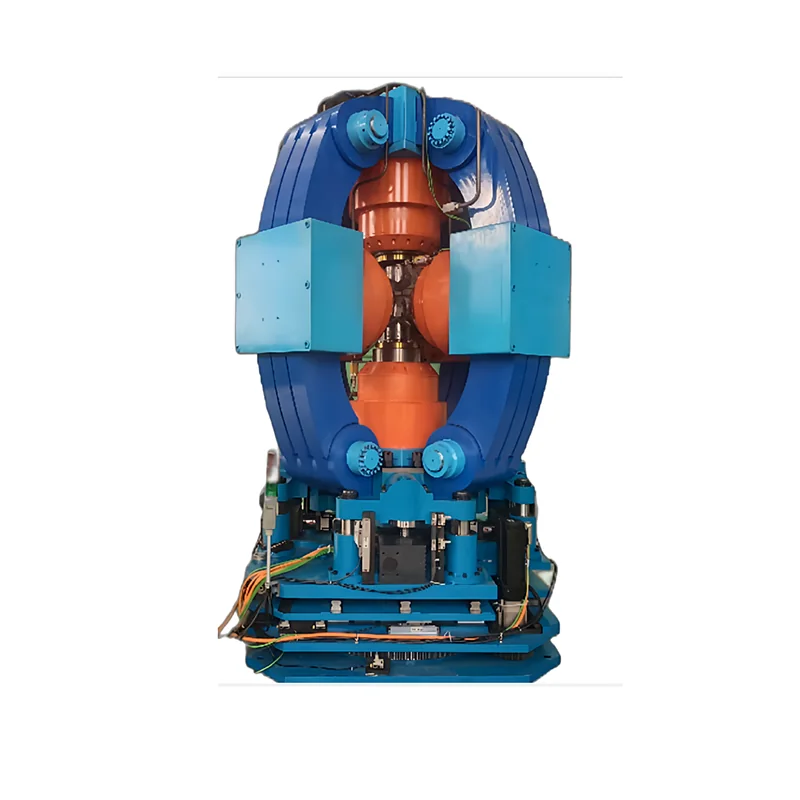

A cubic hydraulic press creates a stable high-pressure, high-temperature environment by driving six opposed anvils toward the center of a cubic sample assembly.
Hydraulic power supplies the compressive load. A high-current circuit then heats the internal reaction cell while sensors, intensifiers and the control system coordinate pressure, temperature, dwell and decompression. The large usable volume makes the equipment suitable for both repeatable industrial synthesis and research that cannot be performed in smaller diamond-anvil cells.
Cubic compression
Six anvils converge along X, Y and Z axes to confine the sample assembly uniformly.
Resistance heating
High current passes through the cell heater to generate and hold the target temperature.
Controlled release
Programmed pressure and cooling profiles protect the product and tooling after synthesis.
02 / Working Principle
From hydraulic force to a calibrated HPHT environment
The exact pressure-temperature relationship is established through tooling design, cell calibration and process recipes, not hydraulic pressure alone.
- 01
Prepare the cell
Powder, catalyst, heater, insulation and pressure medium are assembled to the validated recipe.
- 02
Load symmetrically
Six cylinders advance under synchronized control until the programmed hydraulic pressure is reached.
- 03
Heat under pressure
High current raises cell temperature while the control system maintains load and process stability.
- 04
Dwell, cool and unload
The material is held for transformation, cooled under pressure, then decompressed at a controlled rate.
03 / Engineered Advantages
Built around strength, repeatability and service life
Configurations are engineered to the process, cell size, output target and local utility conditions. Final values are confirmed in the technical proposal.

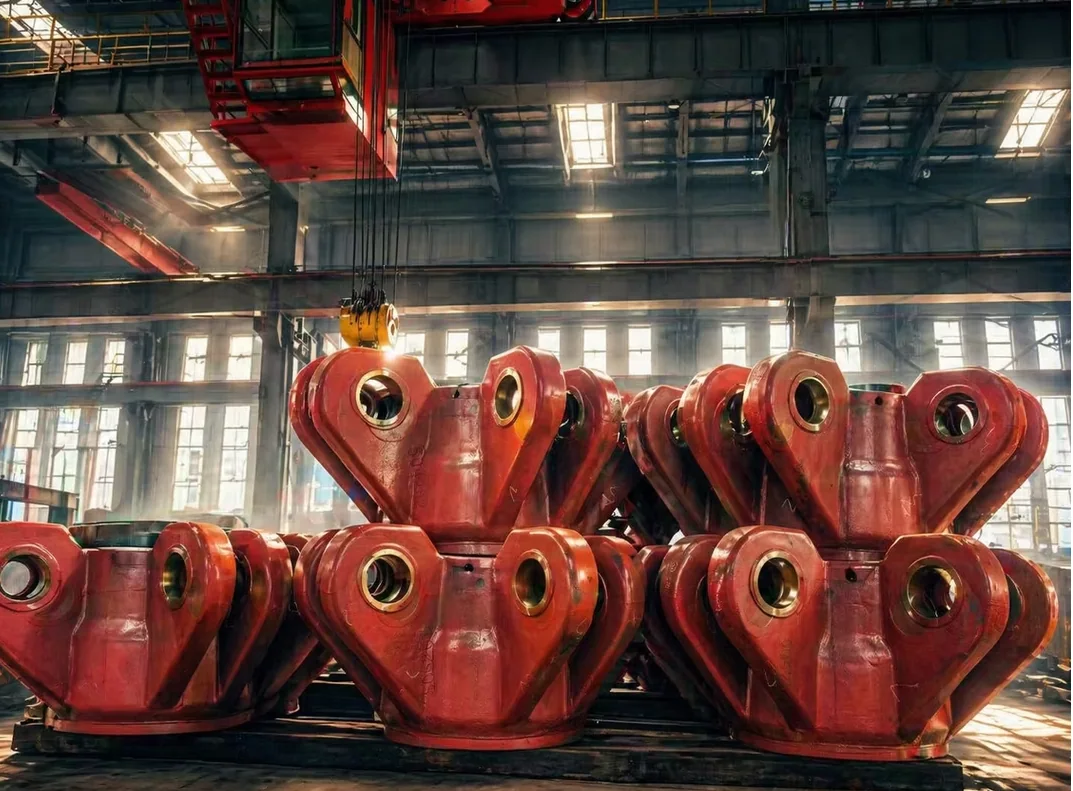

Structural integrity
Cast or forged-welded hinge beams
Finite-element analysis, controlled forging or casting, dedicated heat treatment and non-destructive inspection support uniform deformation and long fatigue life.
110 MPa design pressure
Main-machine design pressure supports demanding HPHT duty; routine operating limits are defined for each delivered configuration.
Compact integrated structure
Working cylinders and hinge beams form a rigid, space-efficient body with reduced operating noise.
Process-level control
Pressure, dwell, heating and decompression recipes can be configured for repeatable production.
Inspection before delivery
Material testing, ultrasonic inspection, hardness checks, metrology and trial operation are built into acceptance.
Broad model range
Cast and forged-welded platforms cover laboratory development through high-volume industrial synthesis.
Lifecycle support
Installation, commissioning, operator training, spare parts and remote diagnostics are available for export projects.
04 / Application Industries
One HPHT platform, multiple material frontiers
Tooling, reaction-cell architecture and control recipes are adapted to each material system.
01

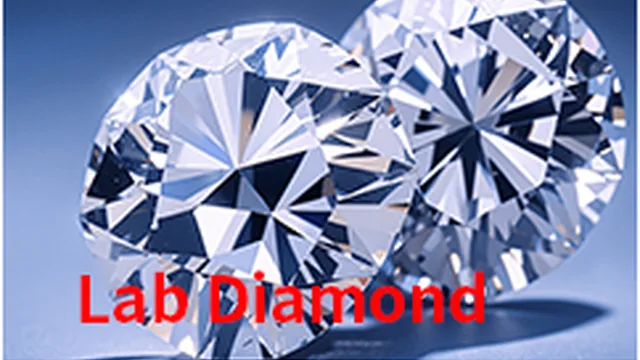

Synthetic & lab-grown diamond
High-purity diamond crystal growth and industrial diamond synthesis.
02

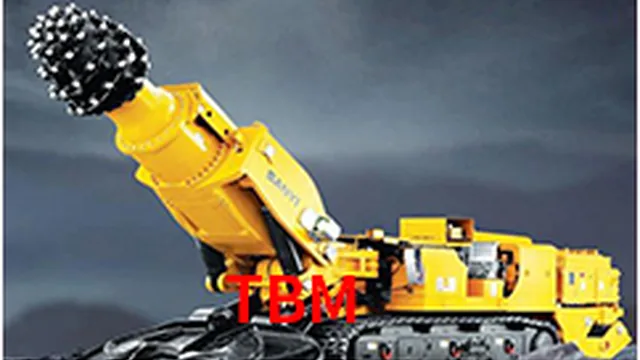

Tunneling & mining
PDC cutters and inserts for TBM, roadheader and abrasive rock applications.
03
CBN / PCBN tooling
Cubic boron nitride crystals and polycrystalline cutting-tool blanks.
04

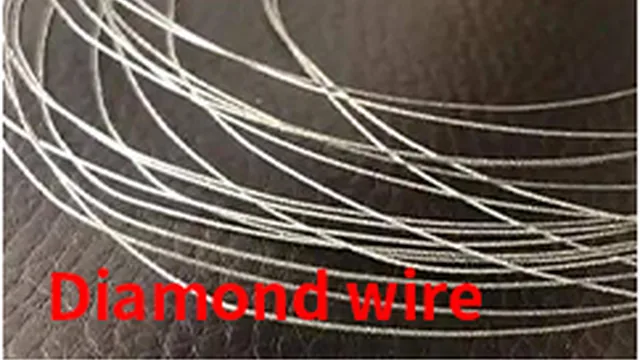

Diamond wire & saw tools
Superhard segments for stone, concrete and precision material cutting.
05

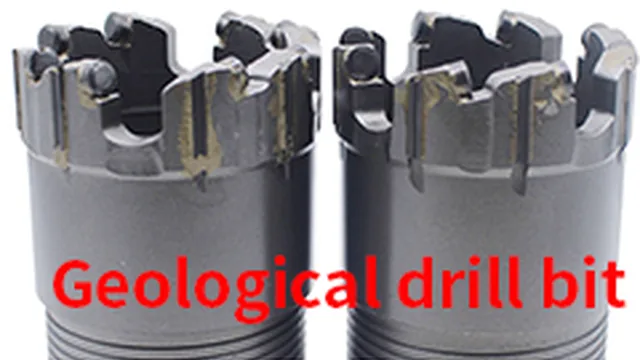

Oil, gas & geothermal drilling
PDC cutters and compact elements engineered for impact and wear resistance.
06
Geoscience & new materials
Large-volume high-pressure experiments for Earth science, semiconductors and functional materials.
05 / Model Selection
Platforms from 420 to 1500 mm cylinder diameter
Representative models are shown below. Tooling, cell volume, utilities, controls and safety systems are finalized around the production recipe.
| Model | Structure | Cylinder | Rated thrust | Max. stroke | Approx. weight |
|---|---|---|---|---|---|
| GY420 | Cast | 420 mm | 13,200 kN | 75 mm | 23 t |
| GY560 | Cast | 560 mm | 23,400 kN | 80 mm | 40.5 t |
| GY650 | Cast | 650 mm | 31,500 kN | 100 mm | 54.5 t |
| GY850 | Cast | 850 mm | 53,800 kN | 100 mm | 92 t |
| GY1200 | Cast | 1,200 mm | 107,300 kN | 150 mm | 262 t |
| GY650D | Forged-welded | 650 mm | 31,500 kN | 90 mm | 52 t |
| GY850D | Forged-welded | 850 mm | 53,800 kN | 100 mm | 89 t |
| GY1000D | Forged-welded | 1,000 mm | 74,500 kN | 110 mm | 126 t |
Reference data from supplied technical literature. Specifications are subject to engineering confirmation and continuous improvement.
06 / Engineering & Delivery

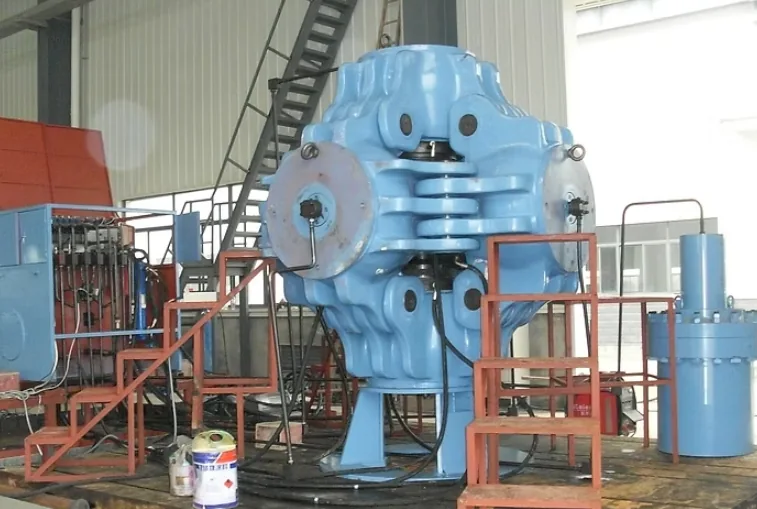

Built, assembled and commissioned as one system
Our project scope can include main press, hydraulic intensification, power heating, control cabinet, tooling interfaces, installation and operator training.

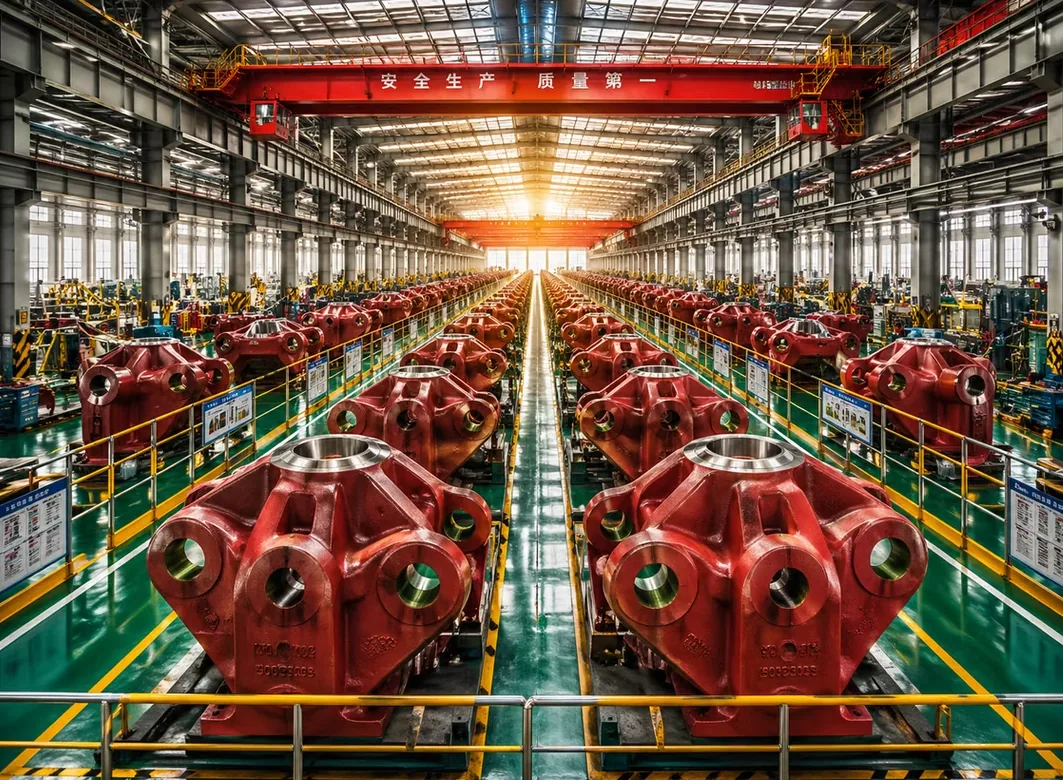

Factory tour
See the manufacturing base behind the equipment

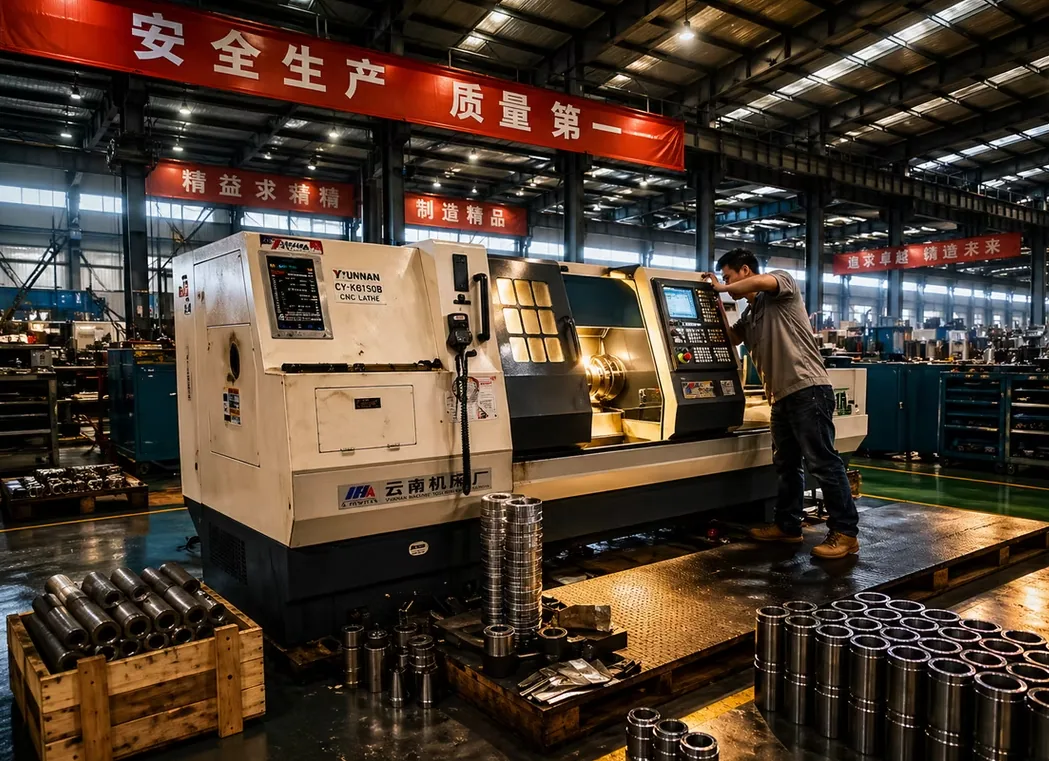

From large-part machining and heat treatment to inspection, assembly and delivery.
07 / About Cronus
International engineering backed by more than 50 years of manufacturing

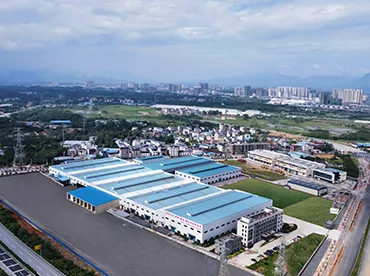

Cronus is a subsidiary of Guilin Mining Machinery Co., Ltd., an industrial equipment manufacturer founded in 1973.
From its Shanghai base, Cronus connects overseas customers with the group's engineering, manufacturing and service resources. The organization combines long-term heavy-machinery production experience with export project coordination, application evaluation and localized lifecycle support.
1973parent company founded
50+years of manufacturing
ISOquality management system
CEconformity support by scope
High-tech enterprise
Recognized provincial technology and manufacturing capability.
ISO 9001:2015
Certified quality management for equipment design and production.
Patented engineering
An active portfolio supporting equipment and process improvement.
Application-led engineering
From process brief to acceptance test
Our engineers translate material goals into cell geometry, pressure system, electrical heating, control logic, safety architecture and service requirements.
08 / Broader Customization
One engineering contact for adjacent production equipment
Cronus also supports selected crushing and biomass projects with electric-motor or diesel-engine configurations, including customized mobile wood chippers. These are separate product lines and can be integrated into a wider plant proposal when required.
View Related Equipment09 / Technical FAQ
Questions engineers ask before specifying a cubic press
Send us your target material, cell dimensions, pressure-temperature profile and planned annual output for a model-specific evaluation.
What is a six-sided cubic hydraulic press?
It is a large-volume high-pressure apparatus that uses six opposed anvils to compress a cubic reaction assembly from three orthogonal axes. It can generate HPHT conditions for material synthesis and physical research.
What pressure and temperature can the working chamber reach?
Depending on cell design, pressure medium, tooling and calibration, systems can be configured for working-chamber conditions up to approximately 6 GPa and 2000°C. Hydraulic pressure and chamber pressure are different values.
How does the machine generate heat?
A high-current power system passes current through a resistive heater inside the reaction cell. Temperature is controlled through a validated power curve and, where applicable, thermocouple feedback.
Which products can be synthesized?
Typical products include industrial diamond, lab-grown diamond, CBN, PDC and PCBN compacts. The platform is also used for functional materials, semiconductor research and geoscience experiments.
What is the difference between cast and forged-welded structures?
Cast frames are proven, economical platforms across a broad size range. Forged-welded structures can offer improved material consistency, fatigue strength and deformation control for demanding long-cycle service.
How is pressure uniformity controlled?
Uniformity depends on cylinder synchronization, anvil geometry, guide accuracy, cell assembly consistency and calibration. The hydraulic and control systems are tuned together during commissioning.
Can each cylinder be controlled independently?
True triaxial research configurations can use independent high-precision control for all six cylinders, enabling synchronous or asynchronous loading, confining pressure and differential stress paths.
What information is required for model selection?
Please provide the target material, cell size, pressure and temperature, dwell time, batch rate, planned output, available utilities, floor constraints and local compliance requirements.
What utilities are normally required?
A typical system requires three-phase electrical power, cooling water, hydraulic oil management, ventilation, foundation capacity and safe material-handling access. Exact loads are model dependent.
What safety systems are included?
Available measures include mechanical guarding, pressure and temperature interlocks, over-pressure protection, emergency stop circuits, controlled decompression and restricted-access operating zones.

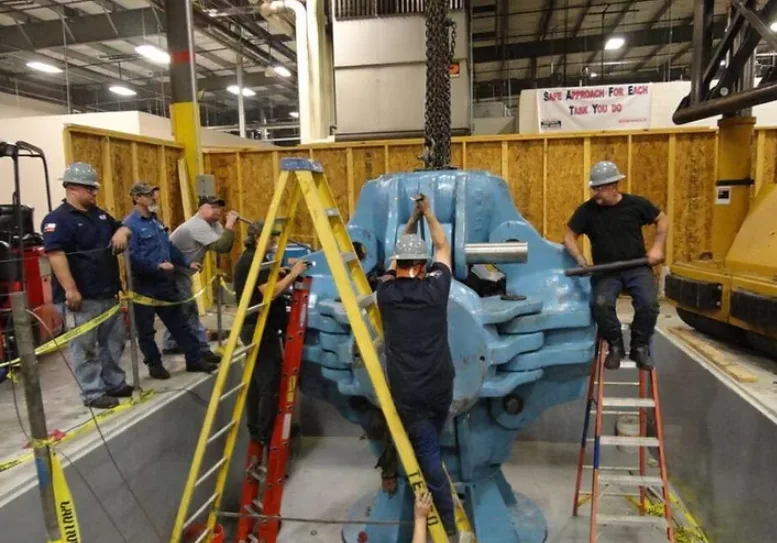

Do you provide installation and training overseas?
Yes. The project scope can include foundation guidance, installation supervision, commissioning, trial production, operator training, preventive maintenance planning and remote support.
Are electric, diesel or mobile configurations available?
The cubic press itself is normally an electrically powered fixed installation. For Cronus crushing and biomass product lines, electric-motor, diesel-engine and mobile wood-chipper configurations can be customized separately.
